Best for
- Large-scale tillage and cultivation
- Heavy drawbar work on broad-acre farms
- Large seeders and high-capacity field implements
- Operators preferring articulated 4WD tires over crawler tracks
Case IH Steiger 620
Case IH Steiger 620: 620 hp, full power shift, Pump 159.0 L/min; High Flow 215.7 L/min option; Twin Flow 427.7 L/min option, 8900 kg.
MODELSteiger 620
DRIVEFour-wheel drive
WEIGHT21839 kg
MARKETTractorData reference; production 2014 - 2023
Engine power
620 HP
620 hp; max 682 hp
PTO output
473 HP
473 hp
Rear lift
8,900 kg
8900 kg
Transmission
full power shift
16 forward and 2 reverse
Tractor overview
The Case IH Steiger 620 is a high-horsepower articulated four-wheel-drive tractor built for large-scale field work. Its 12.9 L FPT diesel is rated at 620 hp with 682 hp maximum output, and claimed PTO power is 473 hp. The drivetrain uses full power shift, while articulated steering and four-wheel drive provide the traction and maneuverability expected in this class. Hydraulic flow is Pump 159.0 L/min; High Flow 215.7 L/min option; Twin Flow 427.7 L/min option and rear-hitch lift is 8900 kg. The tractor’s 391 cm wheelbase and 21839 kg weight place it firmly in the broad-acre category. Compared with a Quadtrac, the wheeled chassis is more conventional for transport and tire management, but buyers still need to verify ballast, axle/tire configuration, hydraulic demand and implement compatibility before purchase.
Who this tractor suits
Not ideal for
- Small-acreage or compact-property work
- Frequent operation in tight yards
- Buyers who do not need high horsepower and heavy-duty implement capacity
Practical specification guide
What the headline specifications mean during real tractor work.
Engine power
The source lists 620 hp and 682 hp maximum power. Size primary tillage and seeding equipment to sustained traction and field conditions, not peak horsepower alone.
Transmission
full power shift. This format is suited to maintaining pull through heavy field loads with predictable gear steps.
Hydraulics
Hydraulic capacity is Pump 159.0 L/min; High Flow 215.7 L/min option; Twin Flow 427.7 L/min option and rear lift is 8900 kg. Verify remote count and continuous flow requirements for planters, drills and air carts.
Axles and traction
The articulated 4WD chassis uses Bar: 5.5 by 120 inches / 139 by 3048 mm. Tire selection and ballast determine slip, flotation and soil impact.
Machine size
Wheelbase is 391 cm and weight is 21839 kg. Confirm shed access, transport equipment and road dimensions before purchase.
Configuration & variant guide
Options and market differences that can change how this tractor is equipped or used.
| Option | Available setup | What it changes |
|---|---|---|
| Hydraulic pump | Pump 159.0 L/min; High Flow 215.7 L/min option; Twin Flow 427.7 L/min option | Select enough flow for the highest-demand implement. |
| Tires and ballast | Tire package not fully specified in the source | Match tire size and ballast to soil conditions and drawbar load. |
| Hitch/drawbar | IVN | Verify hitch category and drawbar vertical-load limits. |
| PTO | 1000 RPM | Confirm whether PTO use is required for the intended implement set. |
| Electrical system | 240 A | Consider electrical load from guidance displays and implement controllers. |
CHECKPOINT 06
Strengths and considerations
What stands out
- High horsepower for broad-acre field work
- Articulated 4WD layout provides heavy drawbar capability
- Strong hydraulic and rear-hitch capacity
- Full powershift transmission suits sustained load work
Check before buying
- Oversized for small farms and tight spaces
- Ballast and tire setup strongly affect performance
- High fuel, tire and maintenance costs relative to utility tractors
- Older models require careful condition and support checks
CHECKPOINT 07
ID
EN
SP
PT
HY
SP
TR
TY
EL
OP
DM
SP
CN
Full specifications
57 data points across 13 categories.
ID
General Identification
8 fields
⌄
- Brand
- Case IH
- Model Name
- Steiger 620
- Model Year
- 2014 - 2023
- Series
- Steiger 4WD Series
- Configuration
- Articulated 4WD
- Tractor Class
- Four-wheel Drive (4WD) Tractor
- Drive Configuration
- Four-wheel drive
- Country of Manufacture
- Fargo, North Dakota, USA
EN
Engine
13 fields
⌄
- Engine Manufacturer
- FPT
- Engine Type
- two-stage turbocharged air-to-water intercooled air-to-air aftercooled diesel, liquid-cooled
- Number of Cylinders
- 6
- Bore × Stroke
- 135 x 150 mm
- Engine Displacement
- 12.9 L
- Aspiration
- Two-stage turbocharged
- Fuel System
- electronic high pressure common rail
- Injection Pump
- High-pressure common rail
- Rated Engine Speed
- 2100 RPM
- Maximum Engine Power
- 620 hp; max 682 hp
- Cooling Fan
- hydraulically-driven fan
- Air Intake System
- Intercooled / aftercooled
- Emission Standard
- Tier 4; selective catalytic reduction (SCR)
SP
Power Output
2 fields
⌄
- Engine Gross Power
- 620 hp; max 682 hp
- PTO Power
- 473 hp
PT
PTO (Power Take-Off)
3 fields
⌄
- PTO Type
- Independent rear PTO
- PTO Speed
- 1000 RPM
- PTO Shaft
- 1.75 in
HY
Hydraulic System
6 fields
⌄
- Hydraulic Type
- pressure flow compensated
- Hydraulic Pump
- Pump 159.0 L/min; High Flow 215.7 L/min option; Twin Flow 427.7 L/min option
- Lifting Capacity
- 8900 kg
- 3-Point Hitch
- Yes
- Hitch Category
- IVN
- Auxiliary Valve
- 4 to 8 valves
SP
Fuel, Fluids & Capacities
1 field
⌄
- Fuel Tank
- Fuel 1722.2 L; DEF 249.8 L
TR
Transmission & Drivetrain
5 fields
⌄
- Transmission Type
- full power shift
- Gearbox Configuration
- 16 forward and 2 reverse
- Forward Gears
- 16
- Reverse Gears
- 2
- Final Drive
- inboard planetary
TY
Tyres & Axle Data
5 fields
⌄
- Tyre Type
- Agricultural radial tires
- Front Tyres
- 710/70R42
- Rear Tyres
- 710/70R42
- Front Axle
- Bar: 5.5 by 120 inches / 139 by 3048 mm
- Rear Axle
- 5.5 by 120 inches / 139 by 3048 mm
EL
Electrical & Electronics
4 fields
⌄
- Electrical System
- 12 V battery system; negative ground; 24 V starter
- Battery Capacity
- 2 batteries, 12 V each, 1000 CCA
- Alternator Output
- 240 A
- Starter Motor
- electric; 24 V
OP
Operator Environment
1 field
⌄
- ROPS
- Cab
DM
Dimensions & Weight
6 fields
⌄
- Wheelbase
- 391 cm
- Overall Length
- 762 cm
- Overall Height
- 396 cm
- Overall Width
- 304 cm
- Unladen Weight
- 21839 kg
- Max Permissible Weight
- 29937 kg max
SP
Ownership & Cost
1 field
⌄
- Price Range
- $468,459 in 2015
CN
Comfort & Noise
2 fields
⌄
- Cabin Type
- Full cab AC
- Air Conditioning
- Yes
No specifications match your search.
CHECKPOINT 08
Sources and verification
Last manually verifiedSeptember 7, 2026
Market / variantTractorData reference; production 2014 - 2023
Reference material
TractorData overview TractorData engine TractorData transmission TractorData dimensions
Accuracy note: Created from the supplied TractorData text extract. Unsupported APS attributes are left blank; no missing numeric specification was invented. Editorial guidance interprets the supplied class and specifications for buyer use.
RELATED
You may also compare

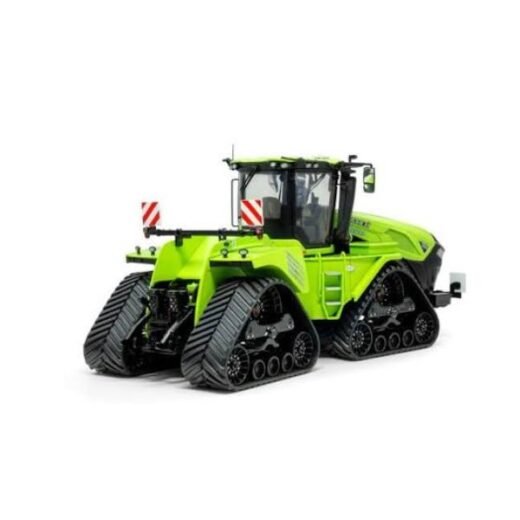

Case IH Steiger 785 Quadtrac
