Best for
- Broad-acre primary and secondary tillage
- Large air seeders and high-hydraulic-demand implements
- Heavy drawbar work where traction and flotation matter
- Large farms needing maximum field capacity
Case IH Steiger 595 Quadtrac
Case IH Steiger 595 Quadtrac: 586.9 hp, PowerDrive, 159.0 L/min; 215.7 L/min optional; 427.7 L/min optional, 10092 kg.
MODELSteiger 595 Quadtrac
DRIVEarticulated crawler
WEIGHT25764 kg shipping
MARKETTractorData reference; production 2024 -
Engine power
586.9 HP
586.9 hp; max 647 hp
PTO output
529.6 HP
529.6 hp
Rear lift
10,092 kg
10092 kg
Transmission
PowerDrive
17 forward and 2 reverse
Tractor overview
The Case IH Steiger 595 Quadtrac is a articulated crawler tractor designed around very high drawbar demand and broad-acre field work. Its 12.9 L FPT diesel produces 586.9 hp with 647 hp maximum output, while claimed PTO power is 529.6 hp. Power is managed through PowerDrive, and the articulated crawler chassis uses track belts instead of conventional tires to spread machine weight and maintain traction. Hydraulic capacity is 159.0 L/min; 215.7 L/min optional; 427.7 L/min optional with 10092 kg rear-hitch lift, supporting large seeding and tillage equipment. With a wheelbase of 391 cm and listed weight of 25764 kg shipping, this is a large-field machine rather than a general-purpose utility tractor. Buyers should focus on track condition, hydraulic specification, drawbar/hitch setup and transport constraints as much as headline horsepower.
Who this tractor suits
Not ideal for
- Small fields and tight farmyards
- Loader-style utility work
- Operations unable to accommodate very high purchase, transport and operating costs
Practical specification guide
What the headline specifications mean during real tractor work.
Engine and field power
The source lists 586.9 hp and 647 hp maximum power. This power level is intended for sustained high-load field operations rather than light utility work.
Powershift transmission
PowerDrive. Its fixed forward/reverse ranges are designed for maintaining pull under changing field loads.
Hydraulic capacity
Available pump flow is 159.0 L/min; 215.7 L/min optional; 427.7 L/min optional and rear lift is 10092 kg. High-flow options are especially important for modern large planters and air seeders.
Tracks and flotation
Track options are listed by the source. Wider belts generally increase flotation but also affect transport width and ground contact.
Weight and transport
Listed machine weight is 25764 kg shipping with a 391 cm wheelbase. Verify transport width, trailer capacity and local road limits before moving the tractor between distant fields.
Configuration & variant guide
Options and market differences that can change how this tractor is equipped or used.
| Option | Available setup | What it changes |
|---|---|---|
| Hydraulic pump | 159.0 L/min; 215.7 L/min optional; 427.7 L/min optional | Determines oil flow available to high-demand implements. |
| Track width | Track widths vary | Changes flotation, traction and transport width. |
| Rear hitch/drawbar | IVN | Match hitch/drawbar category and vertical load to the implement. |
| PTO | 1000 RPM | Relevant when the tractor will power large PTO-driven equipment. |
| Electrical package | 240 A | Higher alternator output can matter with displays, controllers and electrically intensive implements. |
CHECKPOINT 06
Strengths and considerations
What stands out
- Very high engine output for heavy field work
- Track chassis prioritizes traction and flotation
- High-capacity hydraulic system with optional higher flow on many models
- Heavy-duty rear hitch and 1000-rpm PTO capability
Check before buying
- Very large machine for small or irregular fields
- High purchase and operating cost
- Track condition and replacement cost are major ownership considerations
- Transport width and weight require planning
CHECKPOINT 07
ID
EN
SP
PT
HY
SP
TR
TY
EL
ST
OP
DM
SP
CN
Full specifications
51 data points across 14 categories.
ID
General Identification
8 fields
⌄
- Brand
- Case IH
- Model Name
- Steiger 595 Quadtrac
- Model Year
- 2024 -
- Series
- Steiger Quadtrac Series
- Configuration
- Articulated crawler
- Tractor Class
- Articulated Crawler Tractor
- Drive Configuration
- articulated crawler
- Country of Manufacture
- Fargo, North Dakota, USA
EN
Engine
10 fields
⌄
- Engine Manufacturer
- FPT
- Engine Model
- FPT Cursor 13
- Engine Type
- turbocharged diesel, liquid-cooled
- Number of Cylinders
- 6
- Bore × Stroke
- 135 x 150 mm
- Engine Displacement
- 12.9 L
- Aspiration
- Turbocharged
- Rated Engine Speed
- 2100 RPM
- Maximum Engine Power
- 586.9 hp; max 647 hp
- Emission Standard
- Tier IV
SP
Power Output
2 fields
⌄
- Engine Gross Power
- 586.9 hp; max 647 hp
- PTO Power
- 529.6 hp
PT
PTO (Power Take-Off)
3 fields
⌄
- PTO Type
- Independent rear PTO
- PTO Speed
- 1000 RPM
- PTO Shaft
- 1.75 in
HY
Hydraulic System
6 fields
⌄
- Hydraulic Type
- closed center
- Hydraulic Pump
- 159.0 L/min; 215.7 L/min optional; 427.7 L/min optional
- Lifting Capacity
- 10092 kg
- 3-Point Hitch
- Yes
- Hitch Category
- IVN
- Auxiliary Valve
- 4 to 8 valves
SP
Fuel, Fluids & Capacities
1 field
⌄
- Fuel Tank
- Fuel 1779.0 L; DEF 321.7 L
TR
Transmission & Drivetrain
5 fields
⌄
- Transmission Type
- PowerDrive
- Gearbox Configuration
- 17 forward and 2 reverse
- Forward Gears
- 17
- Reverse Gears
- 2
- Final Drive
- planetary
TY
Tyres & Axle Data
3 fields
⌄
- Tyre Type
- Rubber tracks
- Front Axle
- Flange: 88 inch length / 2235 mm
- Rear Axle
- 88 inch length / 2235 mm
EL
Electrical & Electronics
4 fields
⌄
- Electrical System
- 12 V battery system; negative ground
- Battery Capacity
- 3 batteries, 12 V each, 950 CCA
- Alternator Output
- 240 A
- Starter Motor
- electric; 12 V
ST
Steering System
2 fields
⌄
- Steering Type
- Articulated power steering
- Steering Gear
- Articulated
OP
Operator Environment
1 field
⌄
- ROPS
- Cab
DM
Dimensions & Weight
3 fields
⌄
- Wheelbase
- 391 cm
- Unladen Weight
- 25764 kg shipping
- Max Permissible Weight
- 30391 kg max
SP
Ownership & Cost
1 field
⌄
- Price Range
- $1,027,126 in 2026
CN
Comfort & Noise
2 fields
⌄
- Cabin Type
- Full cab AC
- Air Conditioning
- Yes
No specifications match your search.
CHECKPOINT 08
Sources and verification
Last manually verifiedSeptember 7, 2026
Market / variantTractorData reference; production 2024 -
Reference material
TractorData overview TractorData engine TractorData transmission TractorData dimensions
Accuracy note: Created from the supplied TractorData text extract. Unsupported APS attributes are left blank; no missing numeric specification was invented. Editorial guidance interprets the supplied class and specifications for buyer use.
RELATED
You may also compare
Case IH Steiger 600
- Engine
- 600 hp / max 660 hp / 12.9 L
- PTO
- 520 hp / 1000 RPM
- Hydraulics
- Pump 132.5 L/min; Total 159.0 L/min; High Flow 212.0 L/min option; Twin Flow 427.7 L/min option / 8899 kg
Case IH Vestrum 110
- Engine
- 108.5 hp / max 118.4 hp / 4.5 L
- PTO
- 88 hp / 540/1000/540E RPM
- Hydraulics
- 110.1 L/min / 4199 kg

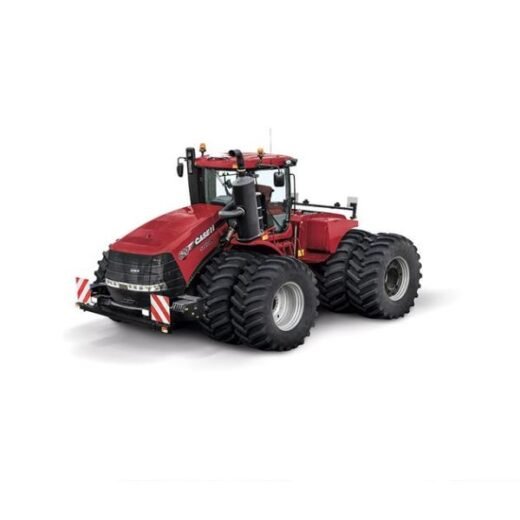

Case IH Steiger 620
- Engine
- 620 hp / max 682 hp / 12.9 L
- PTO
- 473 hp / 1000 RPM
- Hydraulics
- Pump 159.0 L/min; High Flow 215.7 L/min option; Twin Flow 427.7 L/min option / 8900 kg

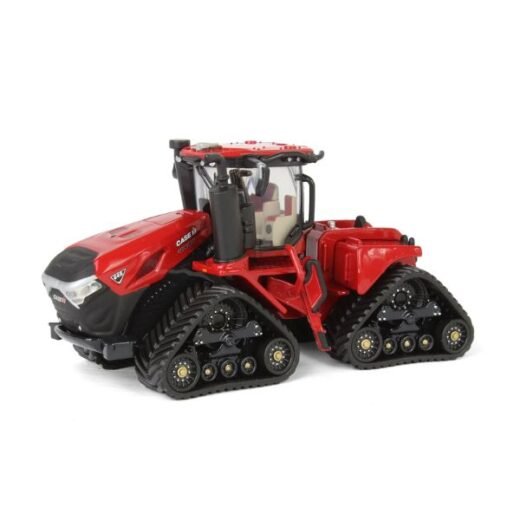

Case IH Steiger 645 Quadtrac
