Best for
- Mowing and general property upkeep
- Hauling with a cart or small trailer
- Light loader jobs with the FLx2407 loader
- Owners who prefer a simple platform tractor

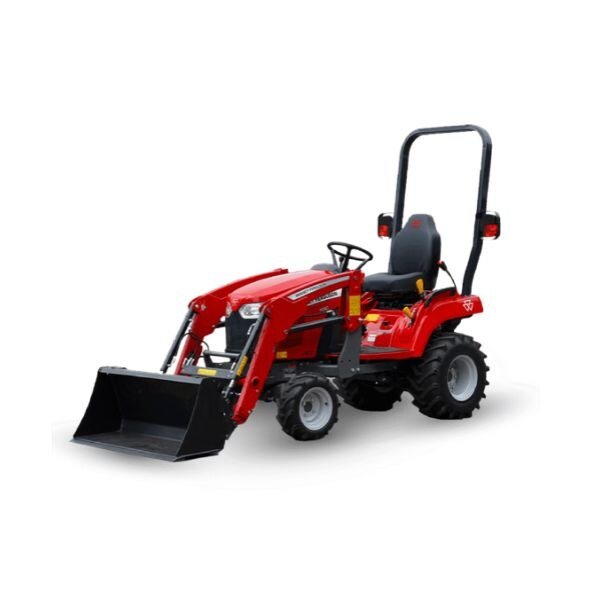

Massey Ferguson 1E.25
Massey Ferguson 1E.25: 24 hp Iseki 1.49 L diesel, 8x8 shuttle or 3-range HST, 1,000 kg lift, 1,210 kg weight.
MODEL1E.25
DRIVE4WD
WEIGHT1,210 kg
MARKETUnited States / North American market; 2025 model year; 1E Series
Engine power
24 HP
24.0 hp (17.9 kW) at 2,600 rpm
PTO output
20.4 HP
20.4 hp mechanical / 19.2 hp HST
Rear lift
1,000 kg
1,000 kg at lift points / 725 kg at 610 mm
Transmission
8x8 synchro shuttle or 3-range hydrostatic (HST)
Mechanical synchro shuttle with shuttle lever; HST with mechanically controlled foot pedal
Tractor overview
Massey Ferguson’s 1E.25 is the smallest tractor in the 1E range, a 24 hp compact driven by a naturally aspirated 1.49 L Iseki three-cylinder diesel. Buyers pick either an 8×8 synchro shuttle or a three-range hydrostatic, and the PTO rating of 20.4 hp (mechanical) or 19.2 hp (HST) shows where it belongs: mowing, hauling and light loader chores rather than big implements. The Category 1 hitch lifts 1,000 kg at the lift points, implement flow is 27.6 L/min, and the 1,210 kg base weight keeps trailering simple. Only a platform with a folding ROPS is offered; no factory cab appears in the 1E line.
Who this tractor suits
Not ideal for
- Wide rotary cutters or balers that need 30 PTO hp or more
- Buyers who want a factory cab
- Long days of loader or backhoe cycling at the limit of 24 hp
Practical specification guide
What the headline specifications mean during real tractor work.
Engine and PTO output
Rated output is 24.0 hp (17.9 kW) at 2,600 rpm. PTO power falls to 20.4 hp with the mechanical gearbox and 19.2 hp with the HST, so compare tillers, finish mowers and cutters against those PTO figures instead of the engine rating.
Choosing a drive
The synchro shuttle offers eight forward and eight reverse speeds with a mechanical shuttle lever. The hydrostatic option uses side-by-side pedals and gives stepless speed inside three ranges.
Hydraulics and hitch
A 7.3 gpm (27.6 L/min) implement circuit sits beside a separate 13.8 L/min steering circuit. The Category 1 hitch lifts 1,000 kg at the lift points but 725 kg when measured 610 mm behind them, which is the number to use for hanging implements.
Weight and footprint
At 1,210 kg, 2,960 mm long and 1,330 mm wide, it fits behind a modest truck and trailer. Ground clearance is 280 mm, so keep a raised loader low when working across a slope.
Loader and backhoe
The FLx2407 loader lifts 657 kg at the pivot pin and 474 kg at 500 mm forward, with a 239 cm pin height. The BH3222 backhoe digs to 220 cm. Treat both as light-duty attachments.
Configuration & variant guide
Options and market differences that can change how this tractor is equipped or used.
| Option | Available setup | What it changes |
|---|---|---|
| Transmission | 8x8 synchro shuttle or 3-range HST | Decides how you change speed and direction, and it also shifts the PTO rating by about 1.2 hp. |
| Operator station | Platform with two-post folding ROPS | Fold the ROPS only for low storage entrances while parked, then raise and lock it before any work. |
| Tires | R14 tires optional | Tire choice changes traction, ground pressure and ride, so ask the dealer exactly which pattern and size are fitted. |
| Loader and backhoe | FLx2407 loader; BH3222 backhoe | Confirm the mounting kit and any ballast requirement before ordering, because attachment weight shifts the balance of a 1,210 kg tractor. |
| Rear PTO | 540 rpm, 1-3/8 in shaft | Published sources disagree on which transmission has the independent PTO, so check engagement behaviour with the dealer if you run stationary PTO equipment. |
CHECKPOINT 06
Strengths and considerations
What stands out
- Simple mechanical or hydrostatic drive choice
- Folding two-post ROPS platform
- Loader and backhoe packages available
- Light 1,210 kg weight eases transport
Check before buying
- 20.4 hp PTO limits larger implements
- No factory cab is offered
- Naturally aspirated 1.49 L engine is the least powerful in the 1E range
- PTO drive details differ between sources
CHECKPOINT 07
ID
EN
SP
PT
HY
SP
TR
TY
EL
ST
OP
IM
DM
SP
CN
Full specifications
51 data points across 15 categories.
ID
General Identification
8 fields
⌄
- Brand
- Massey Ferguson
- Model Name
- 1E.25
- Model Year
- 2025 -
- Series
- 1E Series
- Configuration
- Platform; folding two-post ROPS; 8x8 shuttle or HST
- Tractor Class
- Compact Utility Tractor
- Drive Configuration
- 4WD
- Successor/Predecessor Model
- Replaces MF 1825E (2020-2024)
EN
Engine
9 fields
⌄
- Engine Manufacturer
- Iseki
- Engine Type
- Liquid-cooled, naturally aspirated diesel
- Number of Cylinders
- 3
- Bore × Stroke
- 87 × 84 mm
- Engine Displacement
- 1.49 L (91.4 cu in)
- Aspiration
- Naturally aspirated
- Rated Engine Speed
- 2,600 rpm
- Maximum Engine Power
- 24.0 hp (17.9 kW) at 2,600 rpm
- Emission Standard
- No exhaust aftertreatment listed
SP
Power Output
2 fields
⌄
- Engine Gross Power
- 24.0 hp (17.9 kW)
- PTO Power
- 20.4 hp mechanical / 19.2 hp HST
PT
PTO (Power Take-Off)
3 fields
⌄
- PTO Type
- Rear PTO; drive arrangement varies by transmission
- PTO Speed
- 540 rpm
- PTO Shaft
- 1-3/8 in
HY
Hydraulic System
5 fields
⌄
- Hydraulic Type
- Open center
- Hydraulic Pump
- Two gear-type pumps (steering and 3-point/remotes); implement flow 27.6 L/min, steering 13.8 L/min
- Lifting Capacity
- 1,000 kg at lift points / 725 kg at 610 mm
- 3-Point Hitch
- Yes
- Hitch Category
- Category 1
SP
Fuel, Fluids & Capacities
1 field
⌄
- Fuel Tank
- 38 L (10 gal)
TR
Transmission & Drivetrain
5 fields
⌄
- Clutch Type
- Hydrostatic version: no gear clutch; mechanical version: synchro shuttle
- Transmission Type
- 8x8 synchro shuttle or 3-range hydrostatic (HST)
- Gearbox Configuration
- Mechanical synchro shuttle with shuttle lever; HST with mechanically controlled foot pedal
- Forward Gears
- 8 (shuttle) / infinite within 3 ranges (HST)
- Reverse Gears
- 8 (shuttle) / infinite within 3 ranges (HST)
TY
Tyres & Axle Data
1 field
⌄
- Tyre Type
- R14 tires optional
EL
Electrical & Electronics
2 fields
⌄
- Electrical System
- 12 V, negative ground
- Starter Motor
- Electric
ST
Steering System
1 field
⌄
- Steering Type
- Hydraulic power steering
OP
Operator Environment
2 fields
⌄
- ROPS
- Two-post folding ROPS
- Control Layout
- Side-by-side pedals on HST; mechanical shuttle lever on gear model
IM
Implement Compatibility Matrix
4 fields
⌄
- Rotavator (5–6 ft)RT60.40 tiller (60 in)
- Front Loader Compatible
- Front Loader Lift Capacity (kg)657 kg at pivot pin / 474 kg at 500 mm (FLx2407)
- Backhoe Attachment Compatible
DM
Dimensions & Weight
5 fields
⌄
- Overall Length
- 2,960 mm
- Overall Height
- 2,480 mm (ROPS)
- Overall Width
- 1,330 mm
- Minimum Ground Clearance
- 280 mm
- Unladen Weight
- 1,210 kg
SP
Ownership & Cost
1 field
⌄
- Availability / Market
- United States / North American market; 2025 model year
CN
Comfort & Noise
2 fields
⌄
- Cabin Type
- ROPS
- Air Conditioning
- No
No specifications match your search.
CHECKPOINT 08
Sources and verification
Last manually verifiedOctober 3, 2026
Market / variantUnited States / North American market; 2025 model year; 1E Series
Accuracy note: Manufacturer values from the 2026 MF 1 Series brochure and the MF E Series page were used, including implement flow (27.6 L/min) and length (2,960 mm). The PTO drive type is described neutrally. Attributes that no source publishes are left blank; no missing specification was invented.
