Best for
- Mixed-farm and livestock work
- Transport and loader operations
- Operators choosing between powershift and CVT
- Cab-focused all-season use
Case IH Vestrum 120
A 120 hp premium utility tractor combining compact dimensions, loader readiness and a choice of ActiveDrive 8 or CVXDrive transmissions.
MODELVestrum 120
DRIVEMFD (4WD) only
WEIGHT5,851 kg
MARKETUnited States / Tier 4 Final / cab-only MFD specification
Engine power
120 HP
120 HP rated / 130 HP maximum
PTO output
102 HP
102 HP
Rear lift
3,039 kg
3,039 kg standard rear-hitch lift
Transmission
ActiveDrive 8 dual-clutch powershift / CVXDrive CVT
24F/24R ActiveDrive 8 or stepless CVXDrive
Tractor overview
The Case IH Vestrum 120 is a cab-only, MFD utility tractor built around a 4.5-litre four-cylinder turbocharged FPT engine. The current US model page lists 120 rated horsepower, 130 maximum horsepower and 102 PTO horsepower. Buyers can choose the 24-forward/24-reverse ActiveDrive 8 dual-clutch powershift or the stepless CVXDrive transmission, both with a 40 km/h top-speed specification in the US sheet. The closed-centre load-sensing hydraulic system delivers 108 L/min, while the Category 2 rear hitch is rated at 3,039 kg in the North American spec sheet. Standard published dimensions include a 2,490 mm wheelbase and 5,851 kg tractor weight. This combination makes it well suited to loader, transport, hay and mixed-farm work. Its main buying decision is transmission choice: ActiveDrive 8 offers stepped mechanical efficiency and lower complexity, while CVXDrive prioritizes seamless speed control. The L113 loader is officially matched to the series with up to 1,590 kg lift capacity.
Who this tractor suits
Not ideal for
- Buyers wanting an open-station tractor
- Jobs requiring more than the published 102 PTO HP
Practical specification guide
What the headline specifications mean during real tractor work.
Engine and PTO workload
Case IH Vestrum 120 uses a 4.5 L (273 cu in.) engine rated at 120 HP rated / 130 HP maximum, with 102 HP at the PTO. Size balers, mowers and other continuously driven implements from the PTO figure, not the temporary maximum engine rating.
Transmission choice in real work
Buyers can choose ActiveDrive 8 dual-clutch powershift / CVXDrive CVT. The available layout is 24F/24R ActiveDrive 8 or stepless CVXDrive, with a maximum travel speed of Up to 40 km/h; ActiveDrive 8 suits stepped field and transport work, while CVXDrive favors seamless speed control.
Hydraulic implement performance
The closed-centre load sensing system delivers 28.5 gpm (108 L/min) and the rear hitch is rated at 3,039 kg standard rear-hitch lift. This is the key capacity check for loaders, hydraulic motors and mounted implements.
PTO and hitch compatibility
The Category 2 rear hitch works with Independent rear PTO offering 540 / 540E / 1,000 rpm. Confirm shaft speed, implement category, drawbar load and hydraulic connections on each attachment.
Chassis and service planning
A 2,490 mm wheelbase and 5,851 kg base weight provide a stable utility-tractor platform but increase transport and soil-compaction considerations. Published maintenance guidance lists Engine service interval published as 600 hours.
Configuration & variant guide
Options and market differences that can change how this tractor is equipped or used.
| Option | Available setup | What it changes |
|---|---|---|
| Transmission variant | ActiveDrive 8 dual-clutch powershift / CVXDrive CVT | ActiveDrive 8 provides fixed powershift ratios and familiar step changes; CVXDrive provides stepless speed control and can reduce operator workload in variable-speed tasks. |
| Cab and control package | Cab only; Air-suspension seat; MultiControl armrest / transmission controls | This is a cab-only configuration with air conditioning listed as Yes. Seat, armrest and control package choices affect comfort during long loader or transport shifts. |
| Remote-valve package | 2 mechanical + 1 electronic standard; optional packages available | The number and type of mechanical or electronic rear remotes determines how many hydraulic implement functions can be controlled directly from the tractor. |
| Front equipment package | Front hitch: Optional; front PTO: Optional; published loader capacity: 1,590 kg maximum with L113 loader | Front hitch, front PTO and loader equipment are configuration-dependent and can change axle loading, ballast needs and total cost. |
| Regional and dealer specification | United States / North American specification | Tires, lighting, PTO economy modes, hydraulic valves and electronic features may differ by order code; compare the dealer build sheet with the North American source specification. |
CHECKPOINT 06
Strengths and considerations
What stands out
- Choice of ActiveDrive 8 powershift or CVXDrive CVT.
- 108 L/min closed-centre load-sensing hydraulics.
- Cab-only premium operator environment.
- Officially matched L113 loader.
Check before buying
- No open-station North American configuration.
- Transmission and front-equipment options raise configured cost.
- North American hitch rating is lower than some European published variants.
CHECKPOINT 07
ID
EN
SP
SP
PT
HY
SP
TR
TY
EL
ST
OP
IM
DM
SP
CN
Full specifications
75 data points across 16 categories.
ID
General Identification
6 fields
⌄
- Brand
- Case IH
- Model Name
- Vestrum 120
- Series
- Vestrum Series
- Configuration
- Cab-only North American configuration
- Tractor Class
- Utility Tractor
- Drive Configuration
- MFD (4WD) only
EN
Engine
12 fields
⌄
- Engine Manufacturer
- FPT Industrial
- Engine Model
- 4.5 L FPT
- Engine Type
- 4-cylinder turbocharged diesel
- Number of Cylinders
- 4
- Engine Displacement
- 4.5 L (273 cu in.)
- Aspiration
- Turbocharged
- Fuel System
- Common-rail diesel
- Injection Pump
- Electronically controlled common rail
- Rated Engine Speed
- 2,200 rpm
- Maximum Engine Power
- 120 HP rated / 130 HP maximum
- Governing Type
- Electronic
- Emission Standard
- Tier 4B/Final – Stage V; SCR
SP
Power Output
2 fields
⌄
- Engine Gross Power
- 120 HP rated / 130 HP maximum
- PTO Power
- 102 HP
SP
Brake System
3 fields
⌄
- Brake Type
- Hydraulic wet-disc
- Actuation
- Hydraulic
- Brake Cooling
- Oil-cooled
PT
PTO (Power Take-Off)
4 fields
⌄
- PTO Type
- Independent rear PTO
- PTO Engagement
- Electrohydraulic
- PTO Speed
- 540 / 540E / 1,000 rpm
- PTO Shaft
- Interchangeable PTO shaft
HY
Hydraulic System
11 fields
⌄
- Hydraulic Type
- Closed-centre load sensing
- Hydraulic Pump
- 28.5 gpm (108 L/min)
- Lifting Capacity
- 3,039 kg standard rear-hitch lift
- Lift Control
- Electronic draft control with lower-link sensing
- 3-Point Hitch
- Yes
- Hitch Category
- Category 2
- Lower Link Ends
- Category 2 flex-link ends
- Auxiliary Valve
- 2 mechanical + 1 electronic standard; optional packages available
- Response Control
- Mechanical/electronic, configuration-dependent
- Front Hitch Available
- Optional
- Front PTO Available
- Optional
SP
Fuel, Fluids & Capacities
1 field
⌄
- Fuel Tank
- 180 L
TR
Transmission & Drivetrain
8 fields
⌄
- Clutch Type
- Wet multi-disc
- Transmission Type
- ActiveDrive 8 dual-clutch powershift / CVXDrive CVT
- Gearbox Configuration
- 24F/24R ActiveDrive 8 or stepless CVXDrive
- Forward Gears
- 24 or stepless
- Reverse Gears
- 24 or stepless
- Forward Speed Range
- Up to 40 km/h
- Reverse Speed Range
- Up to 40 km/h
- Differential Lock
- Electrohydraulic differential lock
TY
Tyres & Axle Data
3 fields
⌄
- Tyre Type
- Agricultural radial; size varies by order
- Front Axle
- Class 1.75 MFD front axle
- Rear Axle
- Flange rear axle
EL
Electrical & Electronics
6 fields
⌄
- Electrical System
- 12 V
- Battery Capacity
- 176 Ah, 1,300 EN CCA
- Alternator Output
- 200 A
- Starter Motor
- Electric
- Instrument Cluster
- Digital display; AFS options vary
- Warning Indicators
- Engine, DEF and system warnings
ST
Steering System
3 fields
⌄
- Steering Type
- Hydrostatic power steering
- Steering Gear
- Hydrostatic
- Steering Column
- Tilt and telescopic
OP
Operator Environment
6 fields
⌄
- Seat
- Air-suspension seat
- Suspension Seat
- Standard
- ROPS
- Cab only
- Canopy
- No
- Footstep
- Integrated anti-slip steps
- Control Layout
- MultiControl armrest / transmission controls
IM
Implement Compatibility Matrix
2 fields
⌄
- Front Loader Compatible
- Front Loader Lift Capacity (kg)1,590 kg maximum with L113 loader
DM
Dimensions & Weight
4 fields
⌄
- Wheelbase
- 2,490 mm
- Overall Length
- 4,397 mm to end of lower links
- Overall Height
- 2,835 mm
- Unladen Weight
- 5,851 kg
SP
Ownership & Cost
2 fields
⌄
- Service Interval
- Engine service interval published as 600 hours
- Availability / Market
- United States / North American specification
CN
Comfort & Noise
2 fields
⌄
- Cabin Type
- Full cab AC
- Air Conditioning
- Yes
No specifications match your search.
CHECKPOINT 08
Sources and verification
Last manually verifiedJuly 24, 2026
Market / variantUnited States / Tier 4 Final / cab-only MFD specification
Reference material
Case IH Vestrum 120 official product page Case IH Vestrum specification sheet Case IH L113 loader page
Accuracy note: North American Vestrum spec-sheet values are used. European Vestrum variants publish different hitch, hydraulic and weight figures, so those regional values were not mixed into this entry.
CURATED
You may also compare

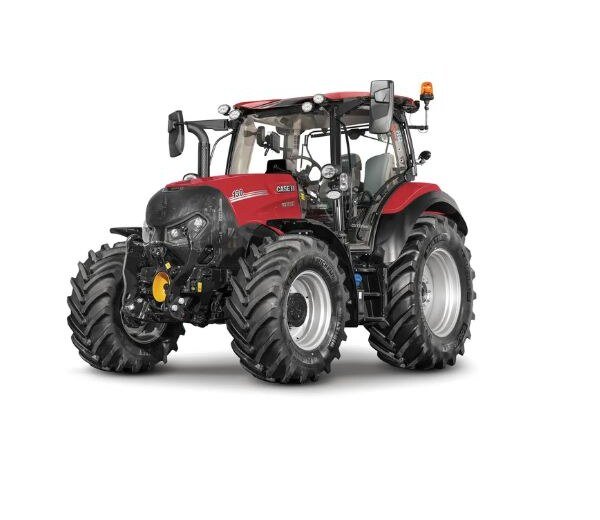

Case IH Vestrum 130
- Engine
- 130 HP rated / 140 HP max, 4.5 L
- PTO
- 111 HP, 540/540E/1,000
- Hydraulics
- 108 L/min, 3,039 kg rear lift

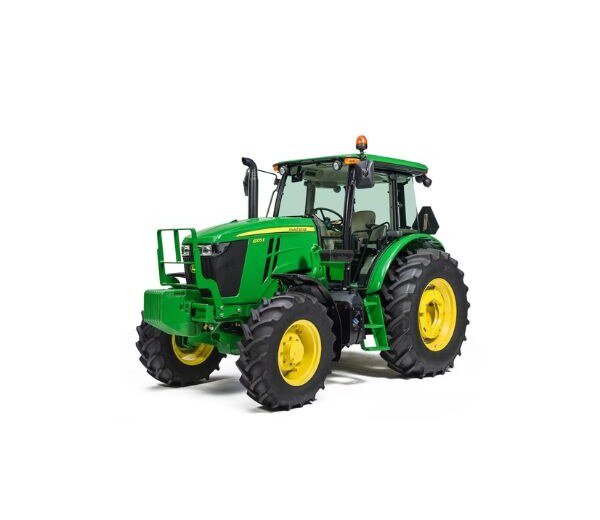

John Deere 6M 105
- Engine
- 105 HP rated / 116 HP max, 4.5 L (275 cu in.)
- PTO
- 79 HP rated / 88 HP with IPM
- Hydraulics
- 80 L/min standard / 114 L/min optional
John Deere 6M 115
- Engine
- 115 HP rated / 126 HP max, 4.5 L (275 cu in.)
- PTO
- 88 HP rated / 106 HP with IPM
- Hydraulics
- 80 L/min standard / 114 L/min optional

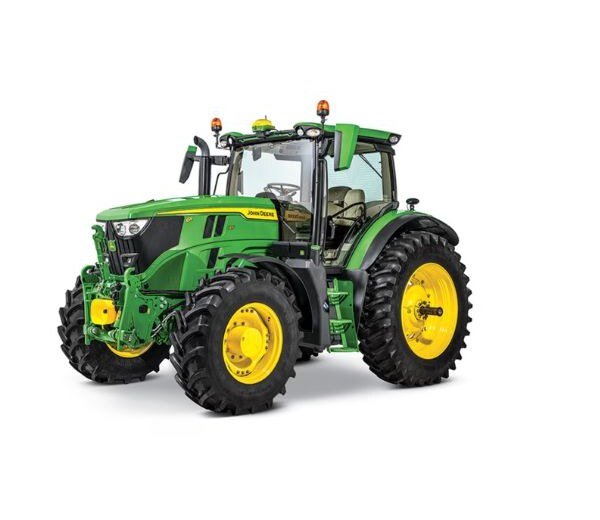

John Deere 6M 125
